How Tall Can I Extend the Mesh Patio Pet Door?

Modified on Tue, 26 May at 2:58 PM

Short Answer

The Mesh Patio Pet Door can fit sliding doors from:

1400–2990 mm (55.1–117.7 inches) depending on:
- pet door size
- Top Extensions used
- Bottom Risers used

You can install:

up to 2 Top Extensions
up to 2 Bottom Risers

How Extensions Work

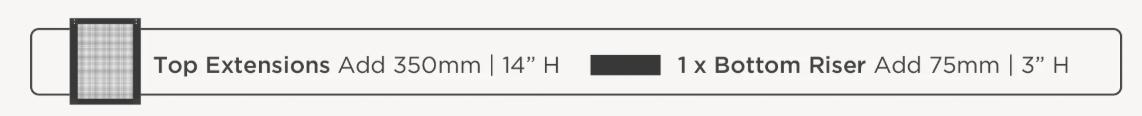

There are 2 extension types available:

Extension Type	Function
Top Extension	Adds 350 mm (13.8 inches) to overall height
Bottom Riser	Raises flap position by 75 mm (3 inches) and also increases total height

Mesh Patio Pet Door Height Guide

Maximum 2 of each extension type can be used together.

Door Size	Bottom Risers	No Top Extensions	1 × Top Extension	2 × Top Extensions
Small	None	1400–2140 mm (55.1–84.3 in)	1750–2490 mm (68.9–98.0 in)	2100–2840 mm (82.7–111.8 in)
Medium	None	1500–2140 mm (59.1–84.3 in)	1850–2490 mm (72.8–98.0 in)	2200–2840 mm (86.6–111.8 in)
Large	None	1600–2140 mm (63.0–84.3 in)	1950–2490 mm (76.8–98.0 in)	2300–2840 mm (90.6–111.8 in)
Small	1 × Bottom Riser	1475–2215 mm (58.1–87.2 in)	1825–2565 mm (71.9–101.0 in)	2175–2915 mm (85.6–114.8 in)
Medium	1 × Bottom Riser	1575–2215 mm (62.0–87.2 in)	1925–2565 mm (75.8–101.0 in)	2275–2915 mm (89.6–114.8 in)
Large	1 × Bottom Riser	1675–2215 mm (65.9–87.2 in)	2025–2565 mm (79.7–101.0 in)	2375–2915 mm (93.5–114.8 in)
Small	2 × Bottom Risers	1550–2290 mm (61.0–90.2 in)	1900–2640 mm (74.8–103.9 in)	2250–2990 mm (88.6–117.7 in)
Medium	2 × Bottom Risers	1650–2290 mm (65.0–90.2 in)	2000–2640 mm (78.7–103.9 in)	2320–2990 mm (91.3–117.7 in)
Large	2 × Bottom Risers	1750–2290 mm (68.9–90.2 in)	2100–2640 mm (82.7–103.9 in)	2450–2990 mm (96.5–117.7 in)

Understanding the Height Guide

Top Extensions

Top Extensions increase the overall height of the pet door to fit taller sliding doors.

Each Top Extension adds:

350 mm (13.8 inches)

Maximum:

2 Top Extensions

Bottom Risers

Bottom Risers raise the flap entry height for taller pets and homes with raised tracks or steps.

Each Bottom Riser adds:

75 mm (3 inches)

Maximum:

2 Bottom Risers

Bottom Risers also increase the total installed height of the unit.

Important Considerations

Extensions are size-specific
Small extensions fit Small doors only
Medium extensions fit Medium doors only
Large extensions fit Large doors only

Because sliding door openings vary between homes, customers should always measure their own door before purchasing.

Helpful Tip

If your sliding door height is close to the upper limit, combining Top Extensions and Bottom Risers can help achieve a better fit. Keep in mind that Bottom Risers also raise the flap entry (step-over) height, so they are generally best suited for taller pets
