How Can I Extend the Mesh Patio Pet Door for Taller Sliding Doors?

Modified on Thu, 9 Jul at 9:05 AM

Short Answer

The Mesh Patio Pet Door fits sliding door openings from 1400–2840 mm (55.1–111.8") using optional Top Extensions.

If your sliding door is taller than the standard height, you can install up to 2 Top Extensions to increase the overall height of the pet door.

Which Top Extension Do I Need?

Used to increase the overall height of the Mesh Patio Pet Door for taller sliding door openings.

Small

Sliding Door Opening	Configuration
1400–2140 mm (55.1–84.3")	No Top Extension
1750–2490 mm (68.9–98.0")	1 × Top Extension
2100–2840 mm (82.7–111.8")	2 × Top Extensions

Medium

Sliding Door Opening	Configuration
1500–2140 mm (59.1–84.3")	No Top Extension
1850–2490 mm (72.8–98.0")	1 × Top Extension
2200–2840 mm (86.6–111.8")	2 × Top Extensions

Large

Sliding Door Opening	Configuration
1600–2140 mm (63.0–84.3")	No Top Extension
1950–2490 mm (76.8–98.0")	1 × Top Extension
2300–2840 mm (90.6–111.8")	2 × Top Extensions

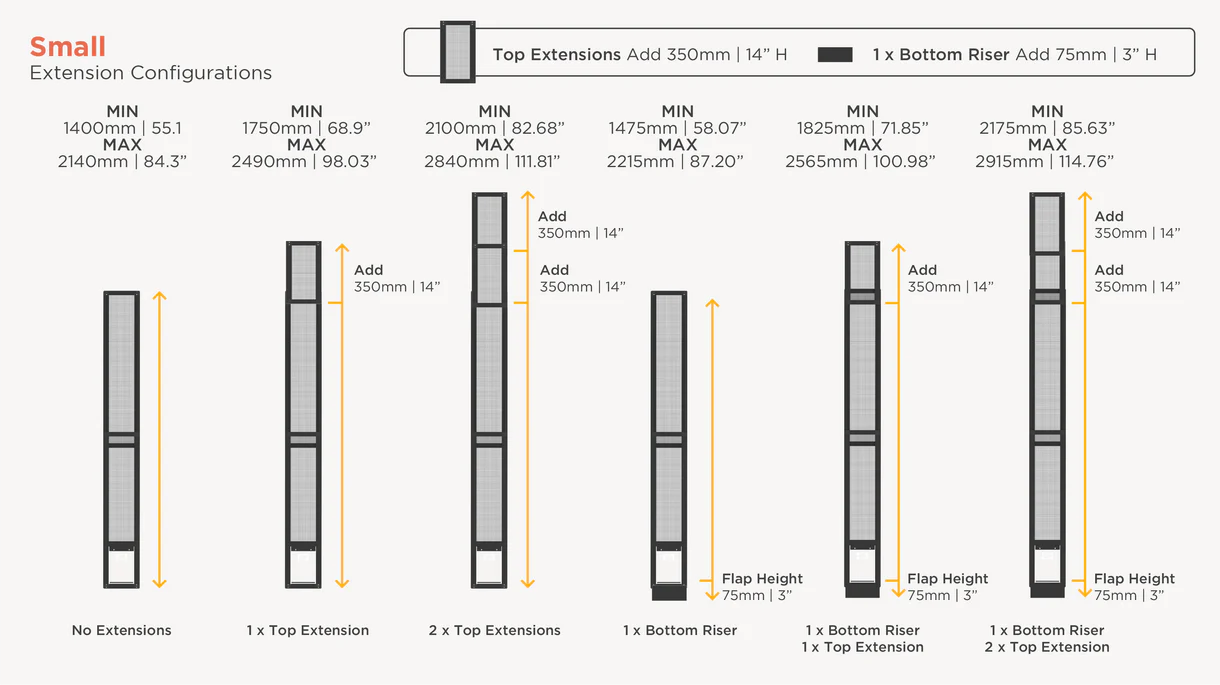

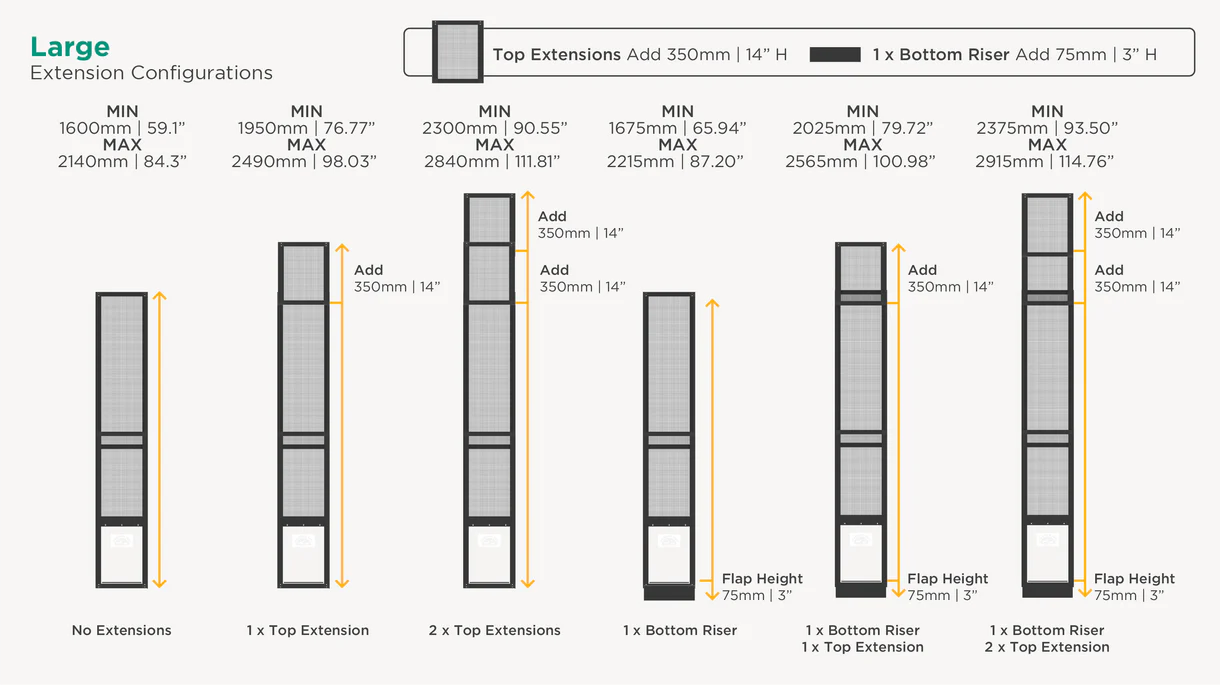

The diagrams below show the available extension configurations for each door size. Bottom Risers are included for reference because they increase the overall installed height of the unit, but they are primarily intended to raise the flap height for taller pets.

Available Extensions

Top Extension

Adds 350 mm (13.8") to the overall height of the Mesh Patio Pet Door.

Used to increase the overall height of the Mesh Patio Pet Door for taller sliding door openings.
Up to 2 Top Extensions can be installed.

Also Using Bottom Risers?

Bottom Risers are designed to raise the flap height for taller pets, making it easier for them to comfortably use the Mesh Patio Pet Door.

Because a Bottom Riser sits beneath the pet door, it also increases the overall installed height by 75 mm (3"). If you plan to use one or two Bottom Risers, remember to include this additional height when checking whether your sliding door opening is suitable.

? If you're unsure whether your pet would benefit from Bottom Risers, see Can I Raise the Flap Height for a Taller Pet? – Mesh Patio Pet Door.

Important Considerations

Maximum 2 Top Extensions.
Extensions are size specific.
Always measure your sliding door opening.
Bottom Risers also increase the overall installed height by 75 mm (3") each.
