Glass Patio Pet Door - Size & Specifications

Modified on Fri, 15 Aug at 12:27 PM


All Size and Specifications for our full range of products can be found within the Specification Tab on the Product Listing Page.

We currently offer two versions of the Glass Patio Pet Door:

  • Version 1 (V1) — Available from 2023 to June 2025

  • Version 2 (V2) — Released from June 2025 onwards


How to differentiate between the V1 and V2 Mesh Patio Pet Door



Each version includes key updates to installation and design features, so it's important to identify which one you have before purchasing accessories or replacement parts.




Glass Patio Pet Door (2025 / V2) – Specifications


Model
Glass Patio Pet Door (2025 / V2)


SKUs

  • Small: White #5075, Black #5078

  • Medium: White #5076, Black #5079

  • Large: White #5077, Black #5080

Frame Thickness
18mm / 0.7"


Small Size

  • Flap: 170mm W x 235mm H / 6.7" W x 9.3" H

  • Step Over Height: 50mm / 2"

  • Frame Width: 265mm / 10.4"

  • Min Height: 1096mm / 77.2"

  • Max Height: 2120mm / 83.5"


Medium Size

  • Flap: 225mm W x 310mm H / 8.9" W x 12.4" H

  • Step Over Height: 100mm / 3.9"

  • Frame Width: 315mm / 12.4"

  • Min Height: 1096mm / 77.2"

  • Max Height: 2120mm / 83.5"


Large Size

  • Flap: 280mm W x 410mm H / 11.2" W x 16.1" H

  • Step Over Height: 150mm / 5.9"

  • Frame Width: 375mm / 14.8"

  • Min Height: 1096mm / 77.2"

  • Max Height: 2120mm / 83.5"


Features
Durable, Robust, Magnetic Catch, Lockable Security Slide

Parts Included

  • Upper Frame (1), Lower Frame (1)

  • Locking Panel (1), Joiner (1), Tube Spanner (1)

  • Foam Weather Seal (3m), Rubber Air Gap Seal (3m)

  • Frame Joining Bolts (4), Pack Out Foam Strip (1)

  • Frame Bracket Pack (3 Screws, 3 Bolts, 3 Brackets)

  • Lock Bracket Pack (1 Bracket, 3 Bolts, 3 Washers, 3 Nuts, 2 Bracket Bolts, 2 Bracket Nuts)

  • Installation Manual

Materials
Aluminium Frame, 3mm Thick Tempered Glass, PVC Flap

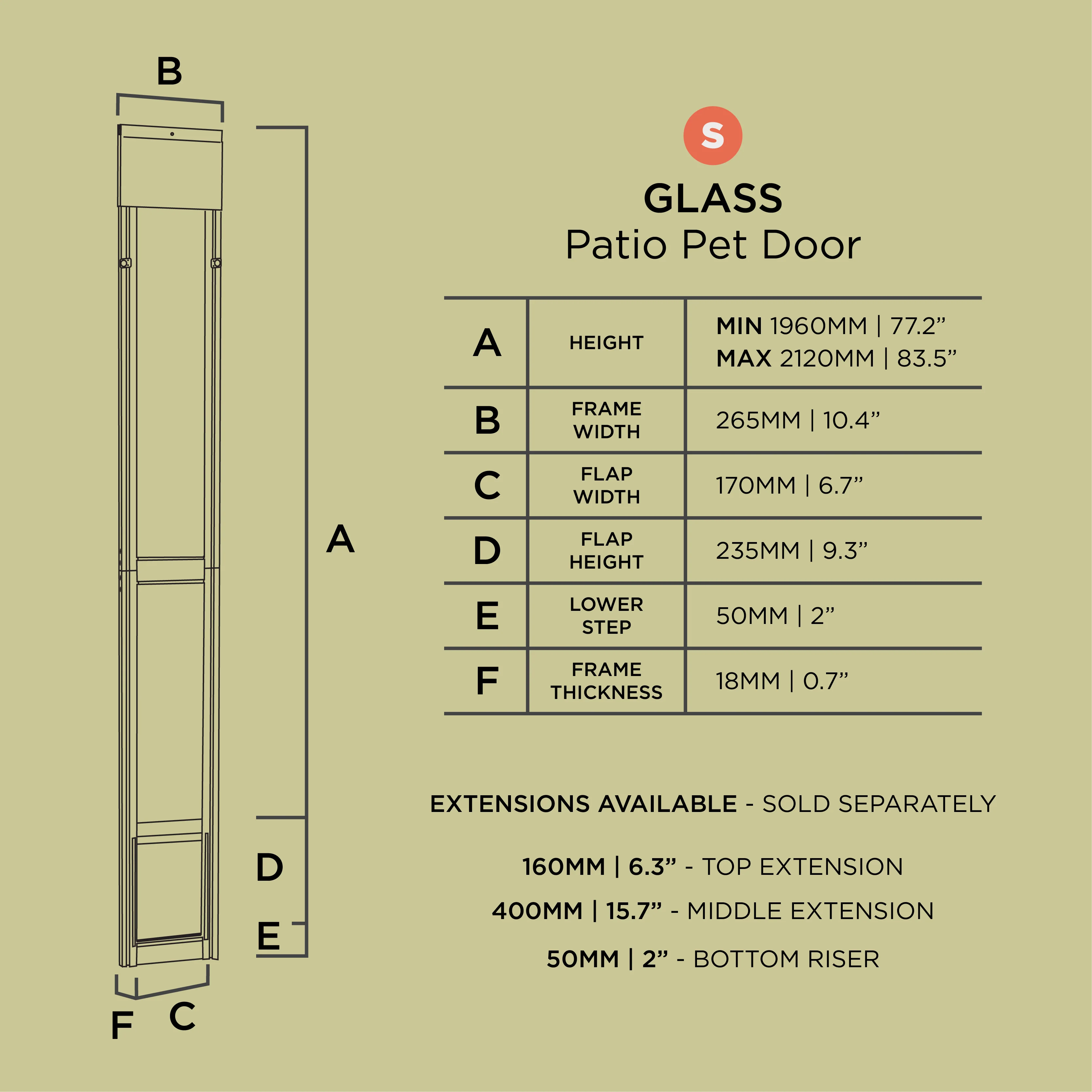

V2 Small Size Infographic Below

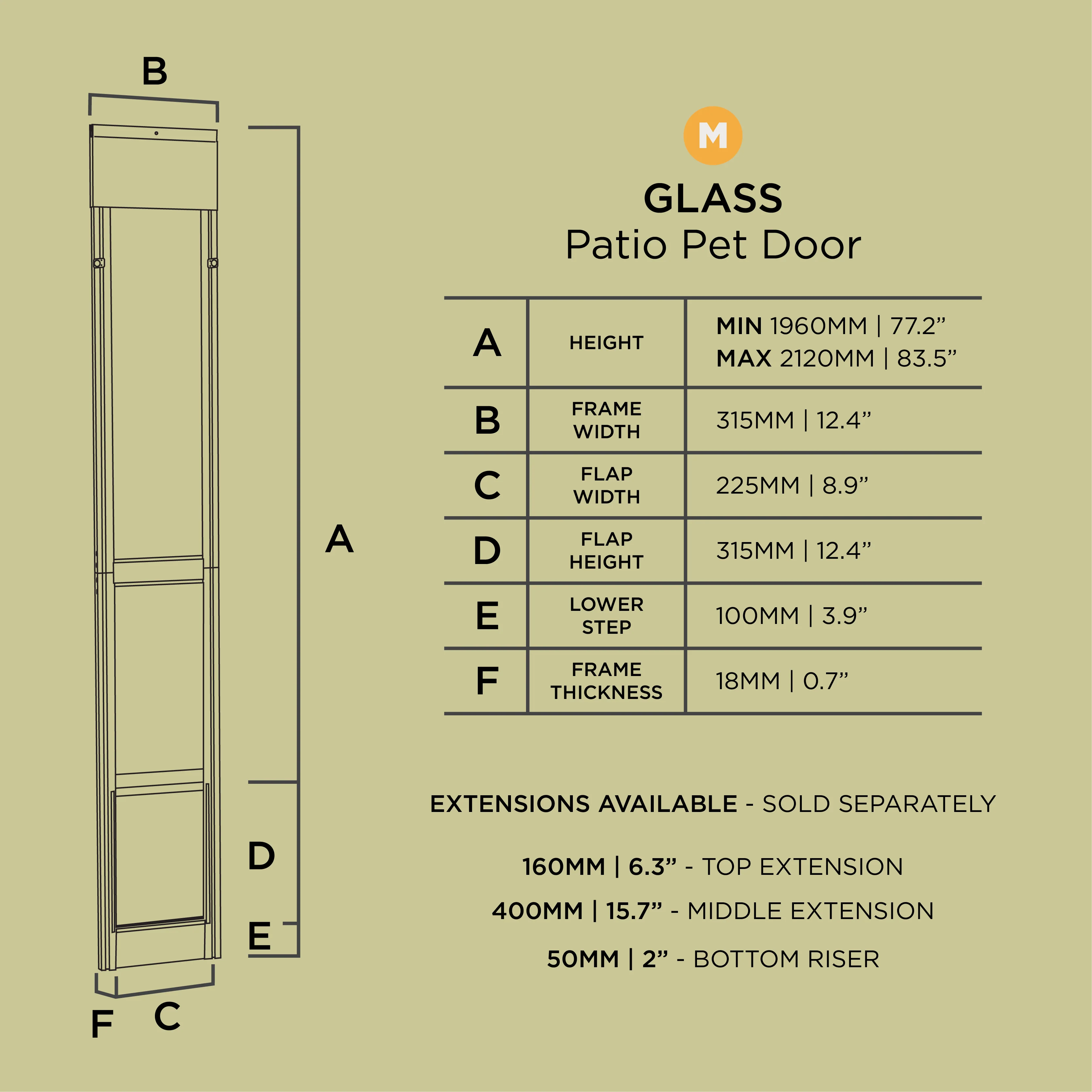

V2 Medium Size Infographic Below

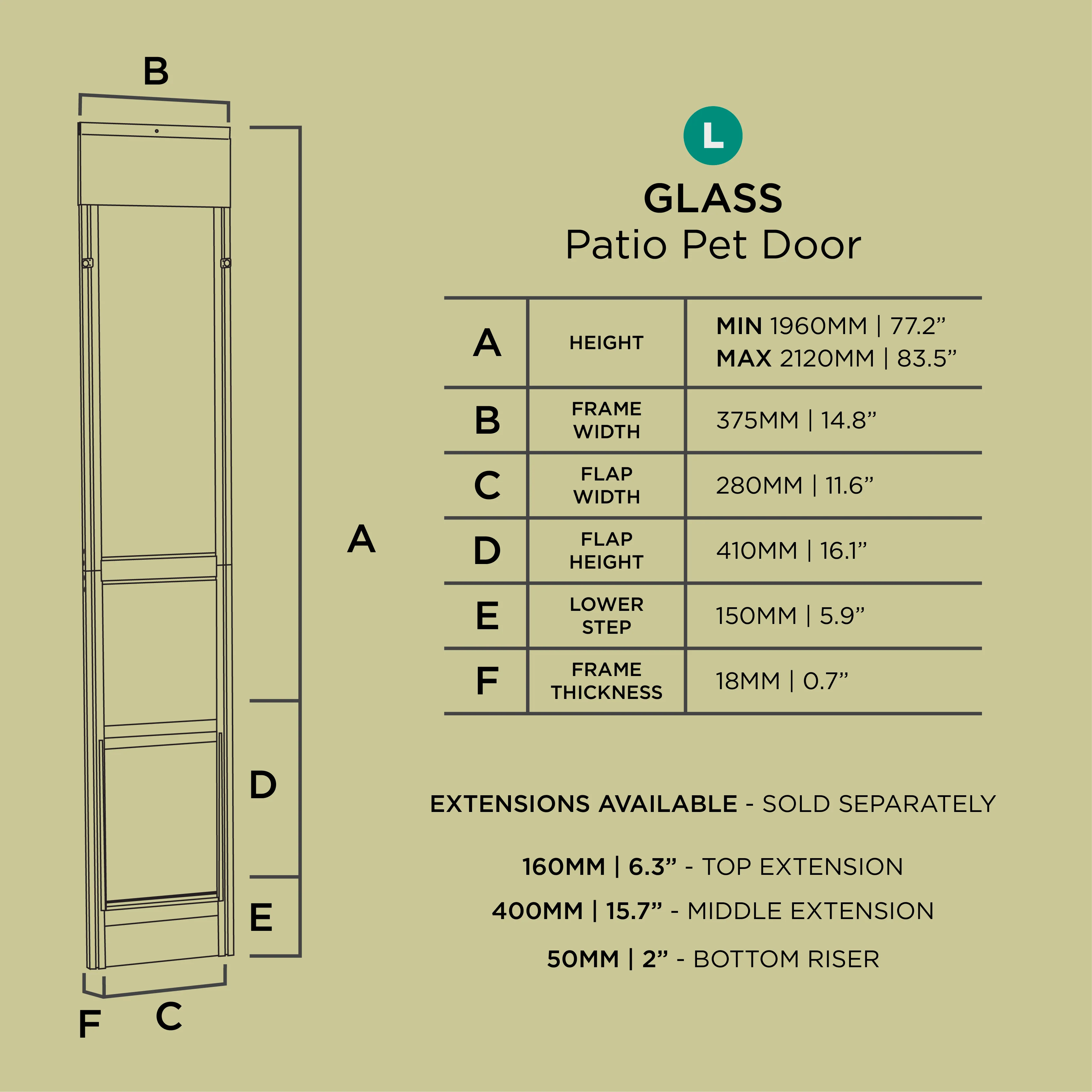

V2 Large Size Infographic Below




Tip: Be aware that the step-over height increases with each door size. Make sure to check the measurements to ensure your pet can comfortably use the door—especially if they’re older, smaller, or have mobility issues.



Glass Patio Pet Door – Version 1 (2023 – June 2025)

For specifications or parts information on the Version 1 Glass Patio Pet Door, please contact our Customer Support team.
